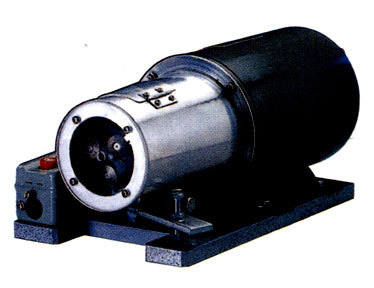

KW-310 Air Wire Stripping Machine

Special mechanical design, wire stripping and twisting completed in one operation.
Special spring hook, the thin end never get loose when twisting.
Twisting single core wire from 22-14AWG.
Suitable for power cord, AC/DC electri wire, multi-core wire & etc.
Model : KW-200
Voltage : AC 110V/220V 50Hz/60Hz
Weight : 15kg
Dimension : W300 x D200 x L160mm

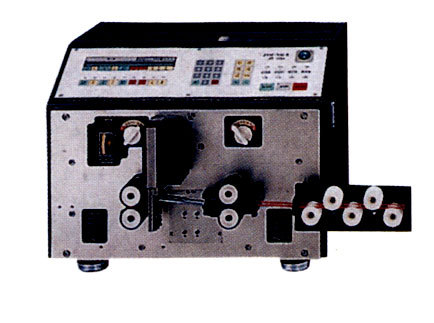

This machine meet the requirements of modern electric features such as light, short, thin, small and high precision
Even a difficult processing wire 1mm to 50mm it can be overcame
For example, the length is 1mm both ends strip 0.3mm can be made, even an insulation wire can be stripped to length of 99mm
Model : KW-220
Cutting Length : 0.1mm-9999.9mm
Stripping Length : 0.1mm-30mm
Applicable Size : AWG #16-AWG #32
Cutting Tolerance : Adjustable
Power Consumption : 20W-250W
Dimension : 450 x 450 x 360mm
Weight : 38.5kg

This machine adoptable to VSF, IV, KV, Teflon, Coaxialcable & etc
Full Automatic cutting, stripping, half-stripping, middle stripping and twisting, this machine also adoptable for diversified sizes wires
Model : KW-220T
Cutting Length : 0.1mm-9999.9mm
Stripping Length : 0.1mm-30mm
Applicable Size : AWG #16-AWG #32
Cutting Tolerance : Adjustable
Power Consumption : 20W-250W
Dimension : 450 x 900 x 360mm
Weight : 43.5kg

One side crimping, twisting (half-stripping)
Fast & easy for applicator replacement
Various detect function attached
Can be connected with wire feeder process
Collocate with wire winder (for long length)
Suitable for wire cutting process only
Basic setting for blade parameter and depth included, independent can be adjusted per process required
Model : KW-600-II
Dimension : L1050 x W800 x H1550mm
Weight : 330kgs
Power : AC220V 50Hz
Cut Length of Wire : 50mm-9999mm
Wire Size : AWG 14-28
Control System : 2.5 Ton
Capacity : Adjustable 0.8-1.3 sec/pc
Operating Method : Inching Single cycle and Auto(continuous)

Large-scale LCD, the picture type of the whole Chinese character shows
Adopting the servo motor and judge the length of line, movements of skinning etc., make the processing length more accurate; Skin the length
Feed, etc. adopt the knob to adjust; simple and fast, the processing condition is established by the button, it is easier to vary the electric wire specification
Model : KW-980L
Cut Length of Wire : 42mm-9999.9mm
Common Material : AWG #10-28
Stripping Length : 3mm-30mm
Size : L1950 x W650 x H1500mm
Weight : 220kg

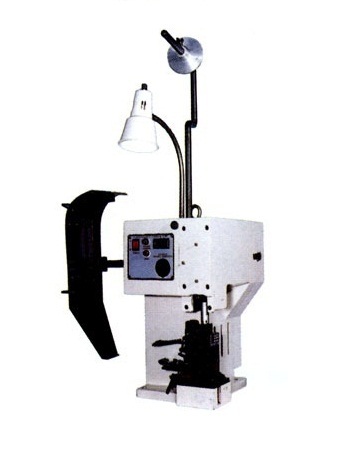

Steady crimping force caused by crankshaft movement
Roller type transmission raises processing speed
Applicable to the crimping of vertical or horizontal type connectors in various sizes
Model : KW-1500
Capacity : 1.5Ton
Stroke length : 30mm
Power Source : AC 110/220v 50Hz/60Hz
Dimension : 380 x 280 x 450mm
Weight : 88kg

Roller clutch, accurate setting
Cassette applicator mount replaceable or crimper-anvil and strip & terminal guide replaceable only, though a change of the terminals, which will be more cost savings.
Model : KW-2000
Capacity : 2 ton
Power source : AC 110/220V 50/60Hz
Motor Power : 1/4 HP
Stroke Length : 30 m/m
Max Feed : 32 m/m
Dimension : 380 X 280 X 470 mm
Weight : 105kg

Roller clutch, accurate setting
Casette applicator mount replaceable or crimper-anvil and strip & terminal guide replaceable only, though a change of the terminals, which will be more cost savings.
Model : KW-2500A
Capacity : 2 Ton
Power Source : AC 110/220V 50Hz/60Hz
Motor Power : 1/4HP
Stroke Length : 30mm
Max Feed : Depend on applicator type
Dimension : 280 x 380 x 480mm
Weight : 100kg

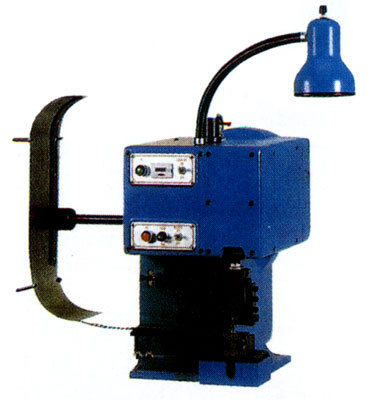

This machine is made up with versatile mechanical structure with the electric-magnetic clutch for automatic electronic detection and advanced sci-tech. The machine is semi-automatic and capable of performing highly efficient job for terminal pressing operation.
Body structure which can house the parts in a compact state is adopted thus enhancing the sturdiness and durability of the machine.
The mechanism is so simple that the time required for tool & dies change and maintenance can be saved significantly
Can accommodate all the upright and horizontal tools and dies of various brands thus ensuring its practically for cost reduction.
Adopts front adjustment which elevates safely in work and diminishes damage conditions.
Model : KM-2500
Crimping Force : 2 Ton
Power source : AC 110/220V 50Hz/60Hz
Motor power : 1/4 HP
Stroke length : 30 mm
Max Feed : Depend on applicator type
Dimension : 280 X 380 X 480mm
Weight : 100 kg

-Electronic Connectors
-Electrical Machine Connectors
-Power Supply Plugs
-Telephone Wires
-Plugs
-Wire Connections

Press Dies and tools are adopted for sufficient power. Bottom material feeding with stability. Authority in Material Feeding. Roller-Type clutch is adopted for accuracy and fast speed.
Model : KW-3000
Capacity : 3 Ton
Power Source : AC 110/220V 50Hz/60Hz
Motor Power : 1/4HP
Stroke Length : 36mm
Max Feed : 36mm
Dimension : 350 x 300 x 460mm
Weight : 116kg
